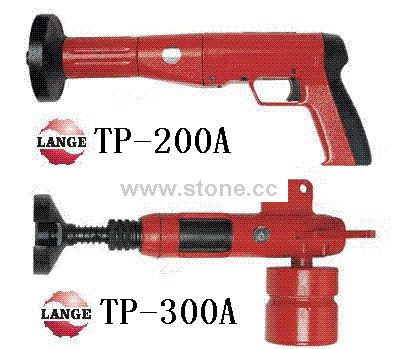

Powder Tool Series (TP-200A TP-300A)

• Place of Origin:

   China

• Type:

  Quarrying and Earthmoving Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1283065

• Place of Origin:

  China
• TP-200A
  SIZE RANGE: 10X18mm power loads(S2)

  TOOL DESCRIPTION
  TP-200A is a direct operative fastener which has strong-power level. It is reliable and easy-operated. There are two types of this product: Fastening tool and testing tool. The fastening tool can be widely used in construction, installation, metallurgical work, steel, mine industry, tunnel, field exercise, highway field, etc. The testing tool is especially designated for determination of compressive strength of hardened concrete. It is an advanced testing tool which operates without any damage to the tested.

  TECHNICAL DATA
  TOOL LENGTH: 380mm
  TOOL WEIGHT: 3.9kg
  LOAD TYPE: S2
  LOAD LEVEL: Red(5), black(6)
  PIN TYPE: GD
  PIN LENGTH: Up to 75m

  TP-300A
  SIZE RANGE: 55mm pins length 10X18mm power loads(S2)

  TOOL DESCRIPTION
  TP-300A is an electric direct operative fastening tool. It can be actuated to fire from distance for driving fasteners into the work pieces, including limestone, granite, concrete, iron, steel, etc, whose hardness is not more than f13. It is especially suitable for the fastening work that people can hardly operate directly. It can't be used in the environment of flammable or explosive gas. It wins two patents in China.

  TECHNICAL DATA
  TOOL LENGTH: 450mm
  TOOL WEIGHT: 6.5kg
  LOAD TYPE: S2
  LOAD LEVEL: Black(6)
  PIN TYPE: GD45
  PIN LENGTH: Up to 55mm
